HX-6175 Multi-Material Compatible Pressure Thermoforming Machine with 610×750mm Maximum Molding Area and 20-30 Mold/Min Efficiency

Brand Name : HengXing

Model Number : HX-7185

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD：15000 $ (deposit)

Payment Terms : L/C,T/T,Western Union,MoneyGram,D/A,D/P

Delivery Time : 45 work days

Packaging Details : wooden case

Model : HX-6175

Applicable raw materials : PET,PP,PC,PS,PVC,BOPS, PLA,Degradable corn starch, etc

production efficiency : 20-30 mold/min

Maximum molding die area : 610×750mm

Minimum forming die area : 400×450mm

Maximum punching area : 610×750mm

Applicable sheet width : 510-750mm

Applicable sheet thickness : 0.15-1.2mm

Maximum cutting force of cutting station : 80T

Height of formed products : Max 120mm

Operating Weight : 14T

External dimensions : L11×W2.0×H2.75m

Cooling method : The mold is cooled by circulating water

Rated power of electric furnace : 117kw (actual consumption 30-50%)

Client air source (external configuration) : Air supply ≥ 5.5m ³ / Min air pressure 0.6~0.8Mpa

Contact Now

Multi-Station Thermoforming Machine for Plastic Flower Fruit Box Stacking Tray & Food Container Production
The HX-6175 fully automatic positive and negative pressure three-station thermoforming machine is advanced equipment designed for multi-scene adaptation, high-precision processing, and high-efficiency production. It addresses key challenges in plastic processing including material limitations, precision inconsistencies, and energy consumption through flexible material compatibility, precise parameter control, and robust processing performance.
Multi-Material Compatibility
The HX-6175 overcomes traditional equipment limitations by supporting multiple plastic raw materials, enabling businesses to expand their product offerings:
  • Compatible materials include PP (polypropylene), PS (polystyrene), PET (polyethylene terephthalate), PVC (polyvinyl chloride), and PLA (biodegradable polylactic acid)
  • Handles food packaging materials (PET, PP), pharmaceutical industry PS, and eco-friendly PLA materials
  • Enables quick switching between product types without core component replacement
  • Supports production of food trays, medical inner trays, conventional packaging, and biodegradable products
Precise Size and Thickness Control
Advanced design and intelligent control systems ensure consistent product specifications and quality standards:
  • Raw material width range: 510-750mm
  • Plastic sheet thickness range: 0.15-2.0mm
  • Capable of producing lightweight snack liners (0.15mm) and high-strength industrial parts trays (up to 2.0mm)
  • Intelligent temperature control and feed systems minimize size errors and thickness fluctuations
  • Ideal for precision applications including pharmaceutical packaging and electronic component trays
Efficient Molding and Cutting Performance
The equipment features synchronized molding and cutting processes for high-volume production:
  • Maximum molding area: 750 × 610mm for large products like food preservation trays and appliance packaging
  • Minimum molding area: 450 × 400mm for small items like cup lids and cosmetic sample holders
  • Maximum cutting area: 610 × 750mm
  • Adjustable molding/cutting station travel: 0-150mm
  • Synchronous processing reduces production cycle times and increases daily capacity
Control System Features
  • High-definition MCGS color IoT touch screen interface
  • Remote monitoring and program upgrades via mobile hotspot connectivity
  • Self-developed system with intuitive operation - operators can master within 1-3 days
  • Fast cycle times up to 50 modules/minute during testing
  • Automatic lubrication, vacuum maintenance alerts, document storage, and internal IO monitoring

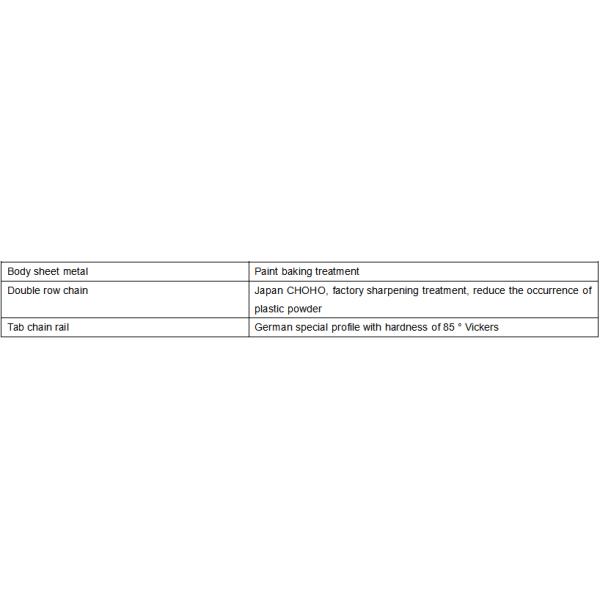

Machine Specifications
HX-6175 Multi-Material Compatible Pressure Thermoforming Machine with 610×750mm Maximum Molding Area and 20-30 Mold/Min Efficiency HX-6175 Multi-Material Compatible Pressure Thermoforming Machine with 610×750mm Maximum Molding Area and 20-30 Mold/Min Efficiency
